Click on any picture for a larger view.

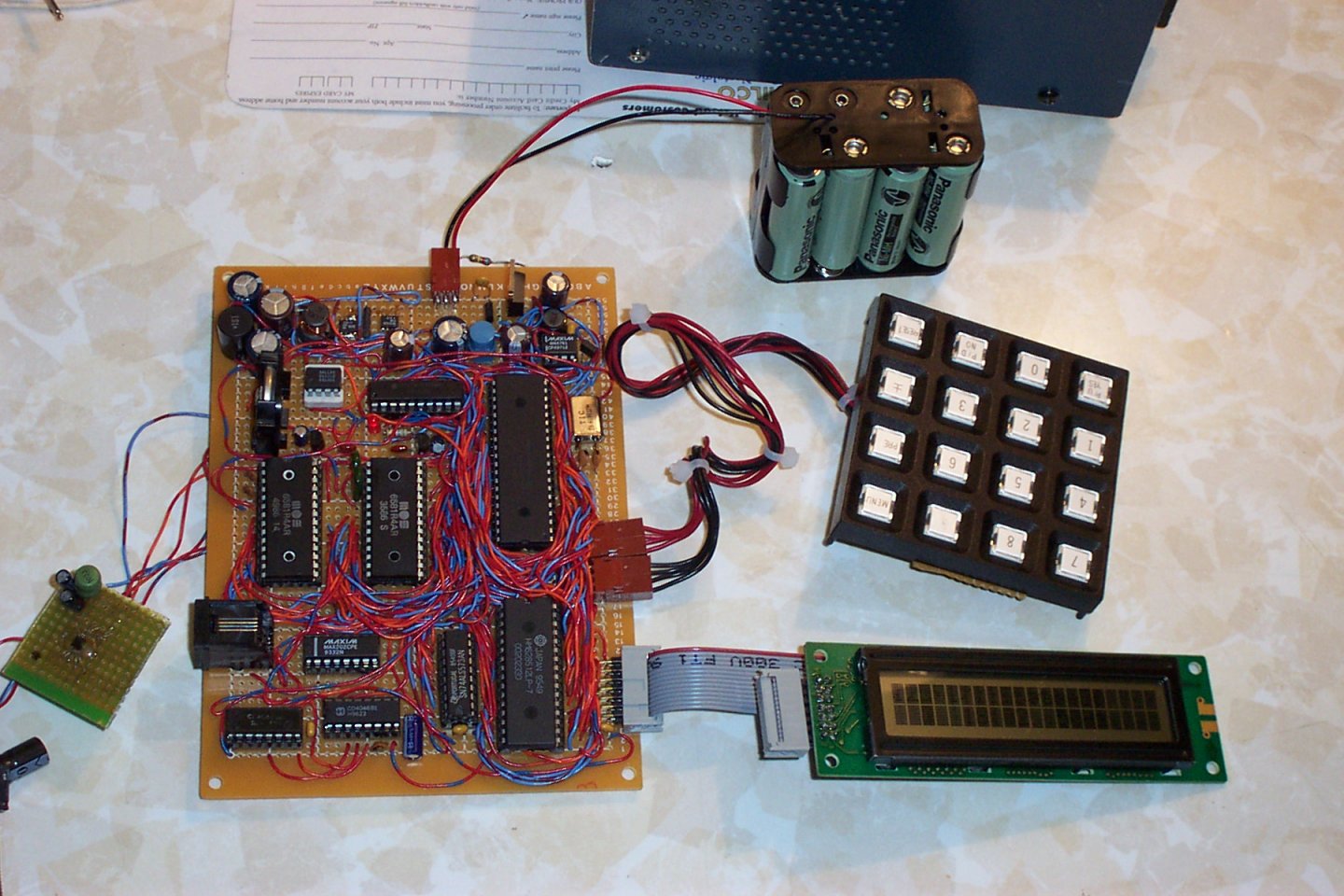

This is an overview of the SIDman. Red LED is the "backlight simulator" :-) Also, the keypad is upside down since it's salvaged from an earlier project proto, and was wired up funny.

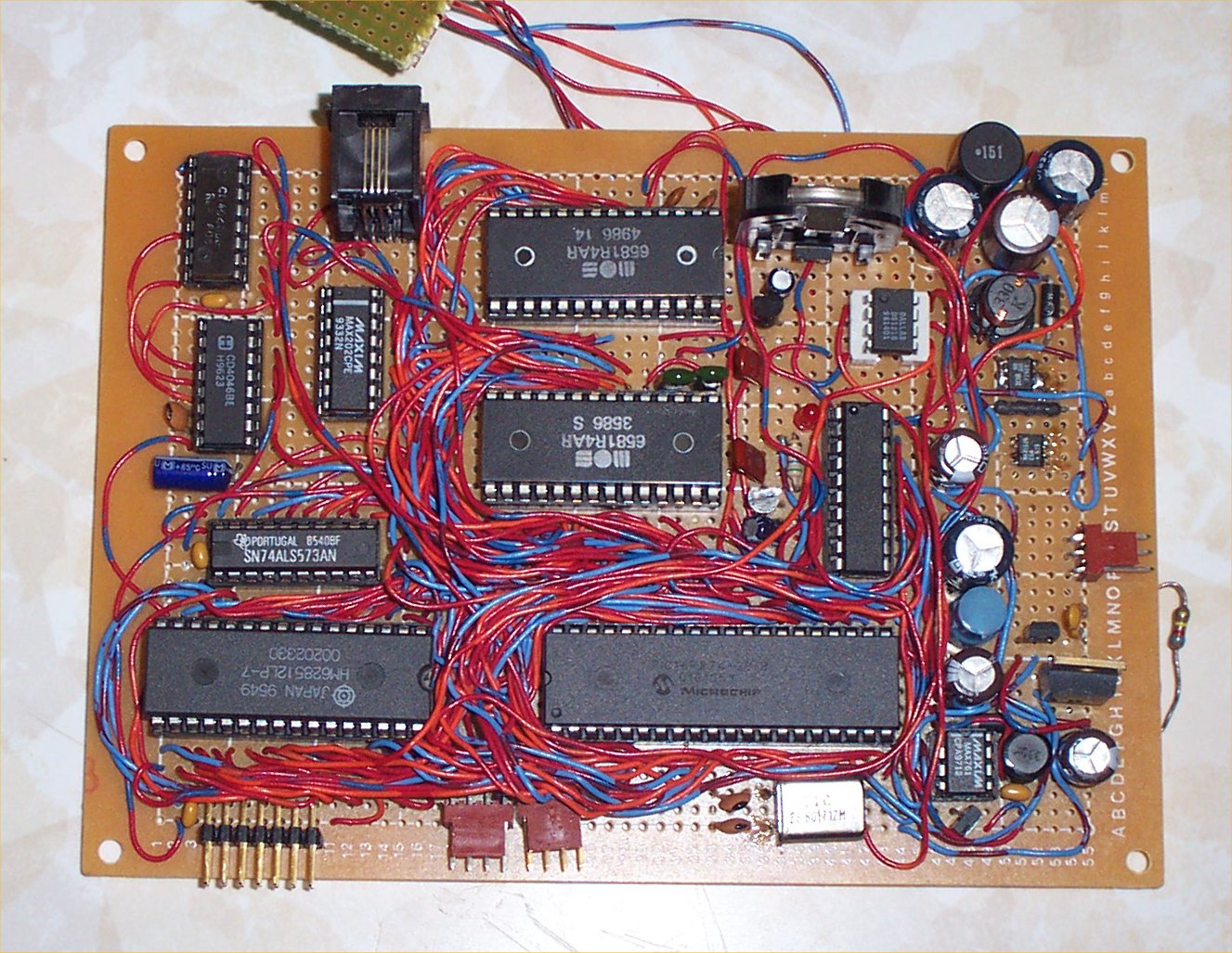

Closeup of PCB.

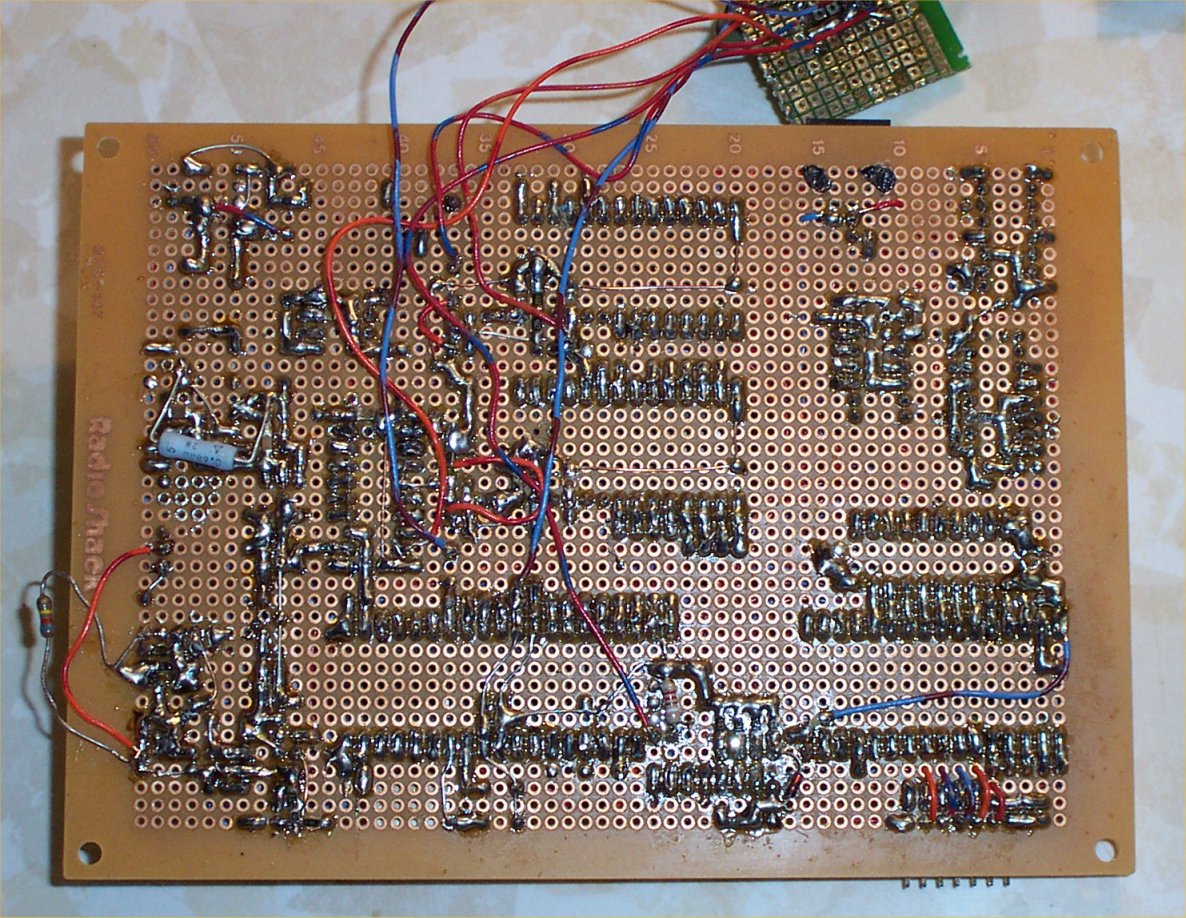

Bottom side of PCB.

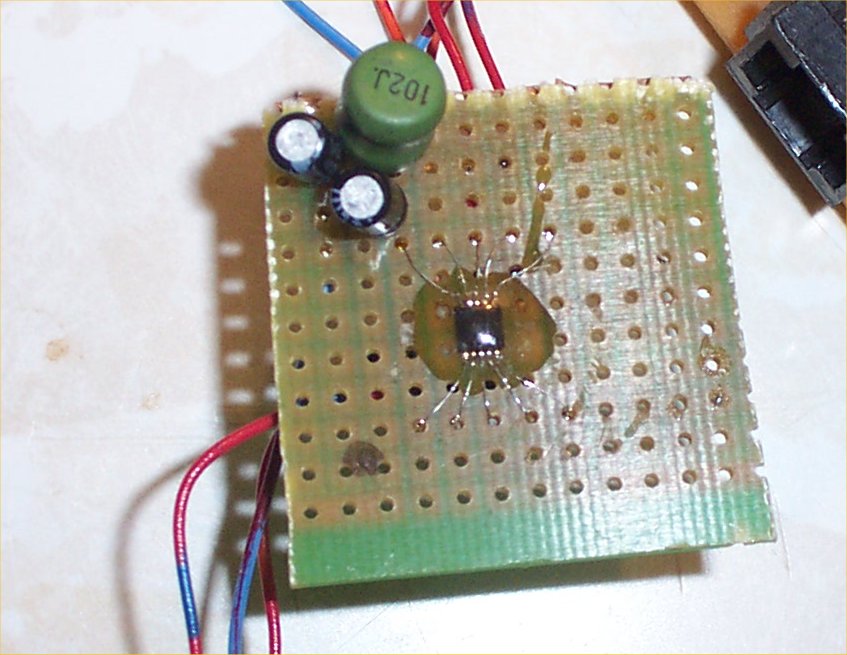

Amplifier chip, hand-soldered. Pin spacing is .018"!

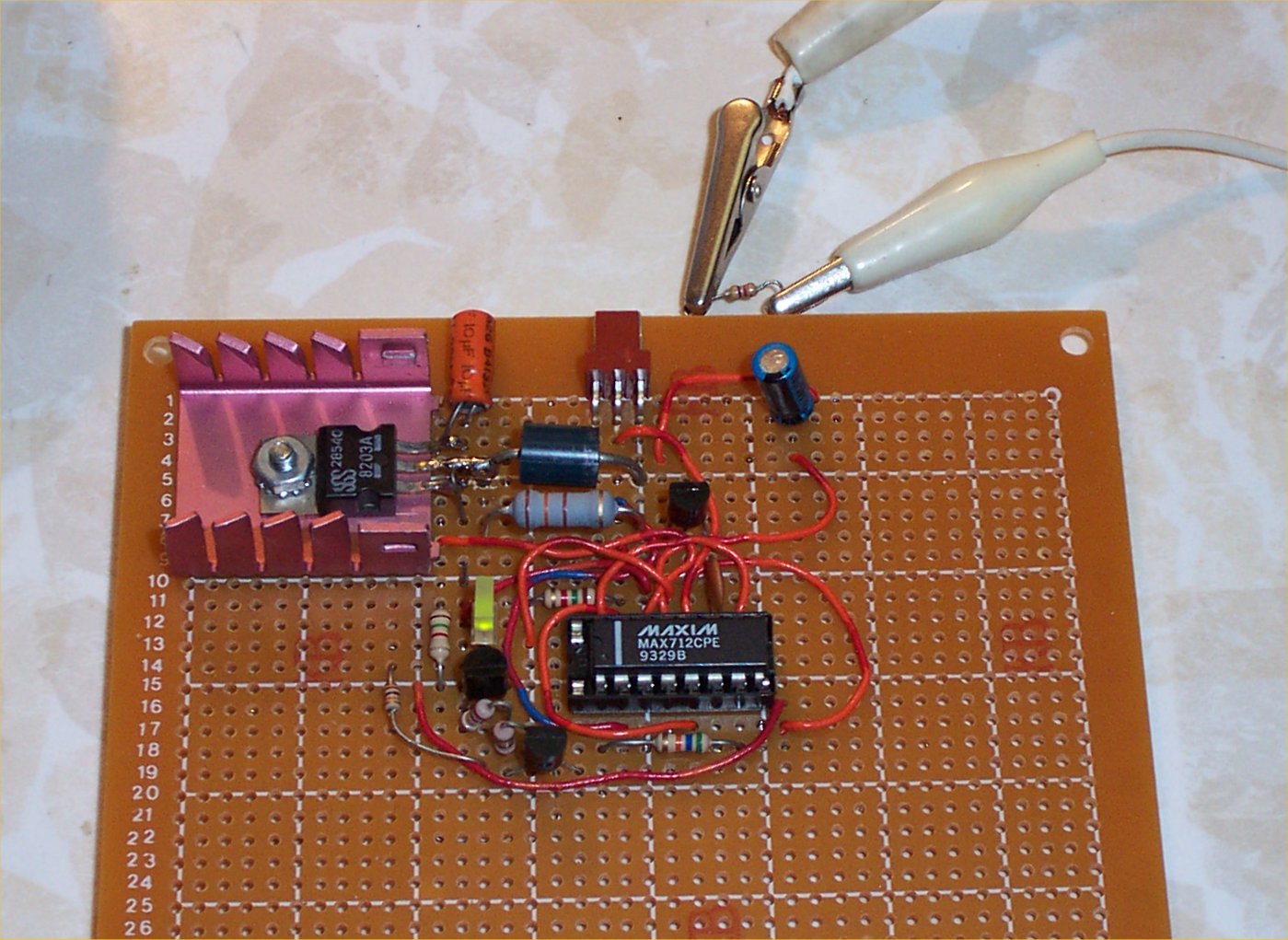

Battery charger proto. Green LED = battery charged.

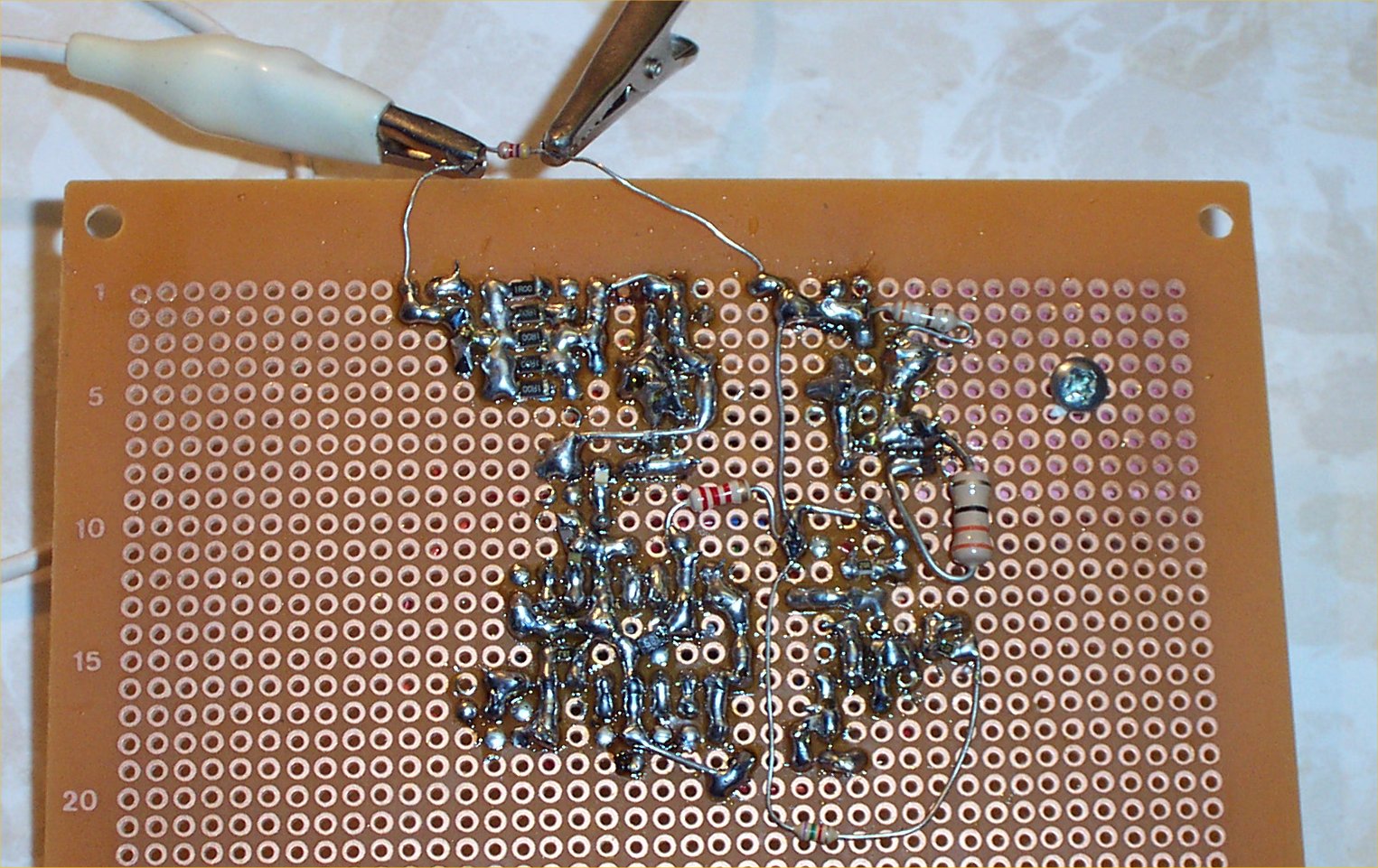

Bottom of the battery charger board.


Sorry these are such poor quality- lighting here SUCKS. The final version's movies should be much better since the LCD will be backlit, and therefore easier to take a movie of.

The main screen
The register display screen (not finished)
